You probably know nmon for Linux and AIX if you come to this page... It is a very simple and nice system monitoring and reporting tool developed by IBM engineer Nigel Griffiths. Recently (July 2009) nmon Linux has been released to the OpenSource community.
NMON has for its reporting aspect many tools to represent the captured data. The main one is "nmon analyzer", to be downloaded from http://www.ibm.com/developerworks/aix/library/au-nmon_analyser/. This Excel macro loads a raw nmon file and generates graphs. I find Excel a perfect tool to manipulate the captured data and render as wish.
For large systems, with number of disk devices greater than 254, nmon analyzer has been edited to a XXL purpose, for Excel 2007 of higher. See bellow for more information.
For more information on this tool and its creator Nigel:
Working sometimes on Solaris, I could not find its equivalent for reporting purpose, especially the ability to setup the tool easily, and to get numerous OS raw measurements and graphs on Excel (as opposed to PDF or custom graphing tool).
So I decided to write such a tool, and I found the easiest way was to start from SAR tool (http://docs.sun.com/app/docs/doc/816-5165/sar-1?a=view) and to add few hooks in order to render system activity in NMON file format.
Sarmon also supports fully RRD output.
||IOStat Service Time
||Processes Wait Times
No warranty given or implied when using sarmon.
Table of Content
Sarmon supports Solaris 10 and 11. Solaris 10 early versions require sarmon early release ('es' version).
Sadc, the sar daemon which captures OS activity, has been modified to output also the nmon file. If sadc generates a file called for example sa17, then another file called sa17.hostname_yymmdd_hhmm.nmon is generated too.
sadc output native file format is not changed.
All sarmon code has been placed into two separate files (sarmon.c and sarmon.h) with most of its methods and variables being static. Any hook method placed in sadc.c will have its name prefixed by sarmon_ to avoid any confusion. There are currently 5 hooks (init, snap, close, sleep and one to capture usage per CPU) in sadc.c.
Additionally prstat project code has been used with out any change to log statistics per process and for accounting per zone or project. At the end of prstat.c, some code has been added to output statistics in nmon format.
Also iostat partial code has been used too in order to render mount points and NFS name to the raw block device name.
"Linux" OS is recognized by the analyzer via the "AAA,Linux" line inside the nmon file.
Project Ground Rules
The project will follow the following rules for its design and implementation:
- Minimum change in original SAR project code. Only few hooks shall be added to process nmon features outside original code. One key reason is that any change of sar project can be merged in minutes
- sarmon is an extension to sar, so any command parameter, feature and output shall remain unchanged
- sadc output raw file format shall not be changed. This means any data structure required for extending sar (i.e. monitor each CPU) shall be carried within sarmon code, and shall not be placed in raw sadc files
- sarmon can provide more monitoring feature, output shall be part of nmon report
- sarmon nmon reporting shall be compatible with nmon file format (well, not formally document thought!), so that tools such as "nmon analyzer" can process the file. Currently it has been tested with version 33D, 33e and 33f
- sarmon does not need to run as root
Original SAR source code has been downloaded from OpenSolaris, under "Common Development and Distribution License" license. Base code version is build 130 (realligned on build 146 today). Original source code locations can be found at:
I have attached current release here. I will soon move to SourceForge as soon as the project matures a bit so that external parties can contribute to this project.
SourceForge project at http://sourceforge.net/projects/sarmon/
||Download from SourceForge
|Binaries (i386 and SPARC)
|Sample Excel Output
|Sample RRD Output
|nmon analyzer XXL
|Average CPU time %:
- user time
- system time
- wait time (= 0 on Solaris 10)
- Idle = 100 - User% - Sys% - Wait%
||User% + Sys%
||Number of CPUs
|Breakdown of CPU Utilisation by logical processor over the collection period
||(in MB) total usable physical memory
||= swapfree + swapused
||(in MB) free physical memory. For Solaris file system cache (FSCache) is located inside this area.
Same as 'vmstat.memory.free' value in MB
||(in MB) Free swap space
Same as 'swap -s.available'
Same as 'sar -r.freeswap / 2' (/2 since unit is block size)
Close to 'vmstat.memory.swap' value in MB (which does not include reserved space)
||(in MB) used swap (reserved + allocated)
Same as 'swap -s.allocated'
|Cache hit ratio
Same as 'sar -b'
|(/s) accesses of system buffers
Same as 'sar -b'
|(/s) transfers using raw (physical) device mechanism
Same as 'sar -b'
||Ignore (negative value)
|(/s) transfer of data between system buffers and disk or other block device
Same as 'sar -b'
||(pages/s) minor faults (hat and as minor faults)
Same as 'vmstat.mf'
||(pages/s) major faults
|(pages/s) pageins and outs
||(pages/s) pages examined by pageout daemon
Same as 'vmstat.sr'
||(pages/s) pages freed by daemon or auto
Same as 'vmstat.re'
|(KB/s) pages paged in and out
Same as 'vmstat.pi and po'
|(KB/s) pages swapped in and out
Same as 'vmstat.si and so'
||(KB/s) pages freed by daemon or auto
Same as 'vmstat.fr'
|(KB/s) read from block device (disk, other [nfs, partition, iopath, tape], controller, VxVM volume)
Same as 'iostat -x.kr/s'. For iostat, a disk is referred as a device. Controller stats: -C option
|(KB/s) written to block device (disk, other [nfs, partition, iopath, tape], controller, VxVM volume)
Same as 'iostat -x.kw/s'. For iostat, a disk is referred as a device. Controller stats: -C option
|(ops/s) read + write (disk, other [nfs, partition, iopath, tape], controller, VxVM volume)
Same as 'iostat -x.r/s+w/s'. For iostat, a disk is referred as a device. Controller stats: -C option
Same as 'sar -d.r+w/s'
|(KB/xfer) Average data size per block device transfer (disk, other [nfs, partition, iopath, tape], controller, VxVM volume)
Same as 'iostat -x.(kr/s+kw/s)/(r/s+w/s)'. For iostat, a disk is referred as a device. Controller stats: -C option
(%) Percent of time the block device is busy (transactions in progress) (disk, other [nfs, partition, iopath, tape], controller, VxVM volume)
Same as 'iostat -x.%b'. For iostat, a disk is referred as a device. Controller stats: -C option
Same as 'sar -d.%busy'
Warning: for controller and VxVM volume, it is an estimation
|(ms) Average service time (disk, other [nfs, partition, iopath, tape], controller, VxVM volume)
Same as 'sar -d.avserv'
Same as 'iostat -xn.asvc_t'. For iostat, a disk is referred as a device. Controller stats: -C option
|(ms) Average wait time (disk, other [nfs, partition, iopath, tape], controller, VxVM volume)
Same as 'sar -d.avwait'
Same as 'iostat -xn.wsvc_t'. For iostat, a disk is referred as a device. Controller stats: -C option

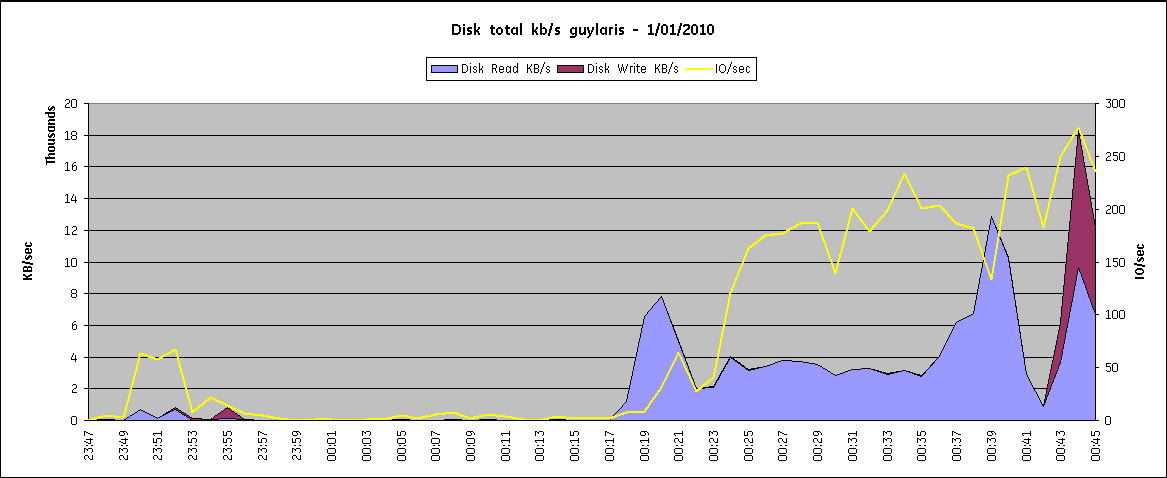

||Disk Read KB/sec
||(KB/s) Total of all disk reads
|Disk Write KB/sec
||(KB/s) Total of all disk writes
||(ops/s) Total of all disk transfers
||(KB/s) KB read on this interface
||(KB/s) KB written to this interface
||(KB/s) KB read + written for this interface
||(KB/s) KB read for all interfaces
||(KB/s) KB written for all interfaces
||(packets/s) packets read on this interface
||(packets/s) packets written to this interface
||(packets/s) incoming packets with error
||(packets/s) outgoing packets with error
||(col/s) collisions per second
||(/s) translations of i-node numbers to pointers to the i-node structure of a file or device. Calls to iget occur when a call to to namei has failed to find a pointer in the i-node cache. This figure should therefore be as close to 0 as possible
Same as 'sar -a.iget/s'
||(/s) calls to the directory search routine that finds the address of a v-node given a path name
Same as 'sar -a.lookuppn/s'
||(/s) number of 512-byte blocks read by the directory search routine to locate a directory entry for a specific file
Same as 'sar.-a.dirblk/s'
||(bytes/s) characters transferred by read system call
Same as 'sar -c.rchar/s'
||(bytes/s) characters transferred by write system call
Same as 'sar -c.wchar/s'
||(bytes/s) tty input queue characters
Same as 'sar -y.rawch/s'
||(bytes/s) tty canonical input queue characters
Same as 'sar -y.canch/s'
||(bytes/s) tty output queue characters
Same as 'sar -y.outch/s'
||the average number of kernel threads in the run queue. This is reported as RunQueue on the nmon Kernel Internal Statistics panel. A value that exceeds 3x the number of CPUs may indicate CPU constraint
Same as 'sar -q.runq-sz'
Same as 'vmstat kthr.r'
||the average number of kernel threads waiting to be paged in
Same as 'sar -q.swpq-sz'
Same as 'vmstat kthr.w'
||(/s) the number of context switches
Same as 'sar -w.pswch/s'
||(/s) the total number of system calls
Same as 'sar -c.scall/s'
||(/s) the number of read system calls
Same as 'sar -c.sread/s'
||(/s) the number of write system calls
Same as 'sar -c.swrit/s'
||(/s) the number of fork system calls
Same as 'sar -c.fork/s'
||(/s) the number of exec system calls
Same as 'sar -c.exec/s'
||(/s) the number of IPC semaphore primitives (creating, using and destroying)
Same as 'sar -m.sema/s'
||(/s) the number of IPC message primitives (sending and receiving)
Same as 'sar -m.msg/s'
||(%) The percentage of time that the dispatch queues are occupied
Same as 'sar -q.%runocc'
||(%) The percentage of time LWPs are swapped out
Same as 'sar -q.%swpocc'
||the number of kernel threads in run queue
Same as 'vmstat.kthr r'
||the number of blocked kernel threads that are waiting for resources I/O, paging, and so forth
Same as 'vmstat.kthr b'
||the number of swapped out lightweight processes (LWPs) that are waiting for processing resources to finish
Same as 'vmstat.kthr w'
||(%) The percentage of time all processes have spent in user mode (estimation since terminated processes are not accounted)
||(%) The percentage of time all processes have spent in system mode (estimation since terminated processes are not accounted)
||(%) The percentage of time all processes have spent in processing system traps (estimation since terminated processes are not accounted)
||(%) The percentage of time all processes have spent processing text page faults (estimation since terminated processes are not accounted)
||(%) The percentage of time all processes have spent processing data page faults (estimation since terminated processes are not accounted)
||(%) The percentage of time all processes have spent waiting for CPU (estimation since terminated processes are not accounted)
|CPU% for this project or zone or task or user. This value is approximative since processes that terminated during the previous laps can not be accounted
Same as 'prstat -J.CPU' (or -Z or -T or -a)
Shows maximum 5 entries by default. It can be adjusted via NMONWLMMAXENTRIES environment variable (see bellow)
|MEM% for this project or zone or task or user. Same as 'prstat -J.MEMORY' (or -Z or -T or -a) when running 64-bit sarmon version on a 64-bit kernel (or a 32-bit sarmon version on a 32-bit kernel). If not matching, it is the sum of the memory of all processes
Shows maximum 5 entries by default. It can be adjusted via NMONWLMMAXENTRIES environment variable (see bellow)
||process id. Only processes with %CPU >= .1% are listed
||(%) average amount of CPU used by this process
Same as 'prstat.CPU'
||(%) average amount of user-mode CPU used by this process
Equal to 'prstat.CPU * prstat -v.USR / (prstat -v.USR + prstat -v.SYS)'
||(%) average amount of kernel-mode CPU used by this process
Equal to 'prstat.CPU * prstat -v.SYS / (prstat -v.USR + prstat -v.SYS)'
||Number of LWPs of this process
Same as 'prstat.NLWP'
||(KB) total virtual memory size of this process
Same as 'prstat.SIZE'
||(KB) Resident set size of the process
Same as 'prstat.RSS'
||(bytes/s) count of bytes/sec being passed via the read and write system calls
||(%) = 100 * ResSize / total physical memory
||(/s) sum of all page faults for this process
||Name of the process
Same as 'prstat.PROCESS'
||The real user (login) name or real user ID
Same as 'prstat.USERNAME'
||(%) of time the process has spent in user mode
Same as 'prstat -v.USR'
||(%) The percentage of time the process has spent in system mode
Same as 'prstat -v.SYS'
||(%) of time the process has spent in processing system traps
Same as 'prstat -v.TRP'
||(%) of time the process has spent processing text page faults
Same as 'prstat -v.TFL'
||(%) of time the process has spent processing data page faults
Same as 'prstat -v.DFL'
||(%) of time the process has spent waiting for user locks
Same as 'prstat -v.LCK'
||(%) of time the process has spent sleeping
Same as 'prstat -v.SLP'
||(%) of time the process has spent waiting for CPU
Same as 'prstat -v.LAT'
||(%) of used disk space
Same as 'df.capacity'. df uses POSIX capacity rounding rules, sarmon rounds to the nearest value (.1 precision)
(%) of used inode space
Same as 'df -o i.%iused'
Removed starting v1.08
Since sarmon follows sadc syntax, there is no room to alter sarmon behavior from the command line. Environment variables is the mechanism choosen in replacement.
|If set, sarmon will output debug information on the console
||If set, sarmon does not generate the sa file, only the nmon file
||If set, sarmon does not generate the CPUnnn sheets. On T series, this can reduce a lot the nmon file size
Use either one to reduce the number of devices shown in DISK* or IOSTAT* graphs. INCLUDE will only include the devices specified, while EXCLUDE will include all devices except the one specified.
Device name is the one shown in sar report. Use blank (space) as delimiter. For example:
export NMONDEVICEINCLUDE="sd0 sd0,a sd0,h nfs1"
||If set, sarmon will generate VxVM volumes IO statistics (read bellow)
||If set, sarmon will generate RRD graphs (read bellow)
||Maximum entries inside the WLM worksheets. If not defined, the default is 5
|Allows external data collectors. Please read nmon wiki for more information
Sarmon since v1.02 supports RRD output (tested with v1.2.19, can be downloaded from http://sunfreeware.com/). To enable this feature set the environment variable NMONRRDDIR to an existing directory prior to starting sarmon. For example:
Sarmon will then output 5 files in a append mode. So if the files already exist, then new lines are added at the end
- genall: script which executes the 3 rrd_ create, update and graph scripts. Execute this script to generate the graphs
- rrd_create: to create the RRD databases
- rrd_update: to insert new values to the databases
- rrd_graph: to generate graphs
- index.html: load with your browser to view graphs
For a 1 day case (288 measurements), generation of all graphs shall not exceed 10 seconds.
RRD files can be processed real time with the FIFO file approach, for example
Sarmon since v1.06 can output VxVM volume IO statistics by aggregating disk IO statistics. It is important to understand that statistics (IOPS, KB in and out, etc) are the aggregation of all disks composing that volume. For example assuming a RAID-1 plex, if an application writes 4KB of data, sarmon KB written reports 8KB, result of 2 writes of 4KB to 2 disks.
Sarmon obtains VxVM configuration by running automatically the following command:
Output and device mapping is included in BBBP worksheet.
In the case a disk belongs to multiple volumes via multiple subdisks, sarmon estimates that the load of that volume is in proportion to the size of each subdisk (subdisk relevant fields are only LENGTH and DEVICE from the configuration). In such a case, the volume will be flagged as estimated (est.) to remind this assumption.
VxVM statistics gathering is activated when NMONVXVM environment variable is set.
Nmon Analyzer XXL
Nmon analyzer supports a maximum of 255 disks. For larger systems, all disk or partition statistics won't be available. More importantly, large system IOPs (xfers) is not calculated correctly.
To check if a system requires the XXL version of the analyzer (and the necessary Microsoft Excel 2007 up), just check any DISK* tab on the normal Excel output. If the column IU contains data (IV being the Totals column), then it is required. For example:
How to Skip SA File Generation
Most admins would continue to rely on the OS bundled sar file generation while adding the nmon file generation, sarmon generated sa file is not necessary. There are 2 ways to skip sa file generation:
- Run without filename and pipe the output to /dev/null. Nmon file is generated following the hostname_yymmdd_hhmi.nmon naming format. For example: ./sadc 60 10 > /dev/null
- Set the environment variable NMONNOSAFILE
How to Test SARMON
For this, just download the binaries and put sadc inside any location. Then run the command './sadc 5 4 tst1' which will take 20 seconds (4 snapshots, 5 seconds in between) to run. This will output 2 files, tst1 and tst1.hostname_yymmdd_hhmi.nmon. You can then process the nmon file via the nmon analyzer Excel macro.
How to Install SARMON
Once sarmon has been tested successfully, there are two ways to install SARMON, the first one being recommended:
- Place the entire bin/ directory content at any location, for example under a standard UNIX user home directory or /usr/local/sarmon, modify sa1 script with correct path and possibly some specific sarmon environment variables. Then setup crontab for that user to run sa1 daily. Refer to /usr/cmd/sa/README or UNIX manual of sar for instructions. For example to run sarmon daily, with snapshots every 10 minutes, add the following entry to crontab of that standard UNIX user (avoid using root)
0 0 * * * /usr/local/sarmon/sa1 300 288 &
- Replace /usr/lib/sa/sadc, /usr/bin/sar and timex by the ones inside the bin/ directory. Make sure you take a backup of the original executables!
How to Compile SARMON
SARMON is currently being developed and tested with GCC. Makefile.master has been updated at few locations, search for keyword 'SARMON' to locate the changes.
- Install gcc if not present. Binary can be downloaded from http://sunfreeware.com/. Code has been tested with gcc v3.4.6 (i386) and v3.4.3 (sparc), both on Solaris 10 10/09. According to ON documentation, one needs to build a higher version, which makes the task hard. Hence step 5 is required to support an old gcc version
- Install ON build tools SUNWonbld-DATE.PLATFORM.tar.bz2. Binary can be downloaded from http://hub.opensolaris.org/bin/view/downloads/on . Specificaly, on SPARC I use http://dlc.sun.com/osol/on/downloads/20090706/SUNWonbld.sparc.tar.bz2 and on i386 I use http://dlc.sun.com/osol/on/downloads/20091130/SUNWonbld.i386.tar.bz2
- Place source code, for example /a/b/sa
- Setup environment variables as bellow (ksh syntax)
export MACH=`uname -p`
- If building for SPARC (to support old gcc 3.4.3)
- Due to some incorrect inclusion (at least on Solaris 10 10/09), you may have to modify the file /usr/include/sys/scsi/adapters/scsi_vhci.h and comment out lines that include mpapi_impl.h and mpapi_scsi_vhci.h
- To change compilation from 64 to 32 bit, change src/usr/Makefile.master (line 315 onward) from -m64 to -m32
- Go to the correct directory
- Build the code
Report Issues or Request Enhancements
Just click on the "Contact" link inside the top left box. In case of issue, I am glad to track down what went wrong and get sarmon fixed ASAP.
- TOP graph
- NET: summary of all interfaces (r & w kb/s)
- System summary: CPU %busy and summary disk IO /s
- IO Summary: summary disk IO r+w kb/s and summary disk IO /s
Better handling of SIGTSTP (ctrl-Z) signal
Added CPU graph:
||Added memory related graphs:
Fix: CPU calculation
- MEMNEW (empty)
nmon filename changed
More output on BBBP tab
Added memory related graphs:
Added disk related graphs:
- DISKREAD and PARTREAD
- DISKWRITE and PARTWRITE
- DISKXFER and PARTXFER
- DISKBSIZE and PARTBSIZE
- DISKBUSY and PARTBUSY
- DISK_SUM (generated)
Added network related graphs:
Added VM graphs:
Added disk related graphs for TAPE (shows only if tape is available)
Added SRM related graphs:
- WLMZONECPU and MEM
- WLMPROJECTCPU and MEM
Support for SPARC (gcc 3.4.3)
List all links inside /dev/dsk, /dev/vx/dsk, /dev/md/dsk
Allign source code on ON build 130, which includes removing sag (bug 6905472)
For device name, use kstat name instead of module name
An interface is found in the kstat when type is net, name is not mac, and has 3 properties defined: ifspeed, rbytes (or rbytes64) and obytes (or obytes64)
Fix: Interface i/o errors output correctly
Show mount points and nfs path
SAR in version 130 changes iodev time internal from kios.wlastupdate to be ks.ks_snaptime. Need to apply the same change on sarmon
Fix: AAA,date value was incorrect
Support nmon environment variables (debug, call external scripts, etc) : NMONDEBUG, TIMESTAMP, NMON_START, NMON_SNAP, NMON_END, NMON_ONE_IN
nmon consolidator is working fine now
Tested with nmon analyzer v. 33e
Add project list (projects -l) to BBBP sheet
Added to TOP stats: CharIO, Faults, Project and Zone
Added JFS related graphs:
Added devices related graphs:
- DISKSVCTM and IOSTATSVCTM
- DISKWAITTM and IOSTATWAITTM
Code cleanup, removed string length limitations, minor optimizations
Fix: CPUnn T0001 was missing
Validated memory use with Solaris Memory Debuggers (watchmalloc.so.1 and libumem.so.1)
Fix: DISK / IOSTAT BSIZE and BUSY where still using old sa time range. Moved to v130 (c.f. v1.01). Disk descriptions have been fixed so that disk summary graph title appears correctly on Excel
No code hard limit in CPU, IODEV, Network Interface, Projects and Zones
Added process stats:
- TOP: USR, SYS, TRP, TFL, DFL, LCK, SLP, LAT
- PROCSOL: sum of USR, SYS, TRP, TFL, DFL, LAT
Support of RRD. This required a full rewrite of the output mechanism
Sleep time is exact so that there is no time drift
Fix: negative and NaN values were improperly nullified
Fix: MEM.memtotal showed 0 for large values
Enhancement: mount points are also shown on DISK stats (not limited to partitions, i.e. for devices such as mdnnn)
Removed limitation of 99 CPUs
Increase MAX_VARIABLES to 255 (number of columns in Excel - 1 for date time column). Some users faced "exceeded number of variables per line" with a high number of disks attached
Added task related stats and graphs:
- SRM usage (CPU, MEM) per task (shows only task existing at the time sarmon starts)
- SRM usage (CPU, MEM) per user (shows only users running processes at the time sarmon starts)
Remove completely limit of columns (MAX_VARIABLES)
Ability to select only a subset of devices to be part of nmon report via environment variables NMONDEVICEINCLUDE and NMONDEVICEEXCLUDE
Added process queue stats and graphs:
Support of early versions of Solaris 10 by disabling minor features. Addresses the following error message:
ld.so.1: sadc: fatal: relocation error: file sadc: symbol enable_extended_FILE_stdio: referenced symbol not found
Sarmon is now built in 64 bit with debugging information
Alligned source code on ON online version 8/11/2010
Added controller level IO stats and graphs, similar to 'iostat -Cx'. Very useful for HBA monitoring:
- DISKREAD, WRITE, XFER, BSIZE, BUSY, SVCTM, WAITTM
Added kernel thread stats:
- PROC: kthrR, kthrB, kthrW
Reordered commands inside the BBBP sheet
Fixes (big thanks to Frédéric Peuron):
- NMON_ONE_IN and NMON_TIMESTAMP validation
- Incorrect wait time when using NMON_SNAP
- Negative sleep time was not correctly handled
- Sleep is handled now with nanosleep, replacing usleep
- Incorrect child_start initial debug statement
- TOP.CharIO was negative for large values
- TOP.Size and TOP.ResSize showed 0 when running a 32-bit sarmon version on a 64-bit kernel
- TOP.%RAM was occasionally showing NaN
- WLM*CPU and WLM*MEM were incorrectly calculated when used MEM% or used CPU% were greater than 25%
- WLM*RAM is now exactly matching prstat when running 64-bit sarmon version on a 64-bit kernel (or a 32-bit sarmon version on a 32-bit kernel)
Support VxVM Volume IO statistics
Ability to change the maximum number of projects, zones, tasks and users via the environment variable NMONWLMMAXENTRIES
Added kernel threads (kthrR, kthrB, kthrW) RRD graph
Changed in BBBP from 'psrinfo -v' to 'psrinfo -pv'
Tested with nmon analyzer v. 33f
Provide nmon analyzer v. 33f XXL for systems with high numbre of disks (>254)
Fix: DISK*, IOSTAT*, CTRL* stats are incorrect for T0001
Fix: Early Solaris version failed on getvmusage call (referenced symbol not found)
Fix: RRD core dumps for number of devices over 156
||Fix: DISK*, IOSTAT*, CTRL* stats are still incorrect for T0001 in some cases
Rewrite of the code that handles JFSFILE to show the same directories as 'df'
Remove 'ls /dev/*' directories in BBBP
Change from prtconf to prtdiag in BBBP
Change from 'df -h' to 'df -hZ' to show disk usage from all zones
VxVM excludes DISABLED plex and subdisks
RRD dsnames include a number to uniquely identify any graph variable
Fix: IOSTAT* NFS shows mount point, not device
Ability to control sa file generation via the environment variable NMONNOSAFILE
Ability to control the CPUnnn sheet generation via the environment variable NMONEXCLUDECPUN
||Improve VxVM statistics for multipathing
